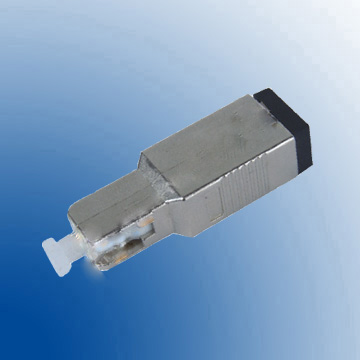

Attenuators, SC-SC, Singlemode, These fiber optic attenuators consist of a male SC connector on one end and a female SC connector on the other end. When a cable end in inserted into the female end, the remaining male end can be connected to the equipment where the cable would otherwise connect directly, but providing the desired signal strength reduction. This attenuator is available in many dB attenuation values between 1dB and 25dB.
Male/Female, 1 to 25dB
Type: Male/Female (Plug, Buildout)
Attenuation method: Doped fiber
Operating Wavelength: 1250nm to 1600nm
Accuracy: 0-5dB +/- 0.3dB, >5dB +/-0.5dB
Return Loss: >50dB
Max Power: 1 watt
PLEASE CALL FOR LENGTHS AND CONFIGURATIONS NOT SHOWN
