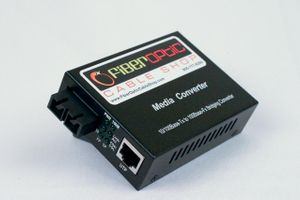

Media Converter, Singlemode, 25km 10/100BaseTX to 100BaseFXME-3420-SM25-SC (25km)
The ME-3420-SM25-SC (singlemode) media converter transfers data over duplex fiber at 100Mbps (at 1310nm) and connects to copper Ethernet at 10 or 100 Mbps while auto-sensing the correct speed. Maximum distance for this unit is 25km (15.5miles). Distance on the Ethernet side is 100 meters (328 feet) using Cat-5 or better (unshielded or shielded twisted pair) copper cable. The fiber connections are SC and the copper Ethernet connection is RJ-45.
Please Note-- Price is for each unit. Normally two are required.
Power: 5vdc at 2.5 watts. Power supply included operates at 110-260vac at 50-60Hz.
Operating temperature: 0° to 55°C (32° to 130°F)
Operating humidity: 5% to 80% (non-condensing)
Fiber connections: Singlemode: SC.
Copper connection: RJ-45 (standard Ethernet)
Fiber cabling: Singlemode: duplex, 8-9/125.
Maximum distance: Singlemode: 25km (15.5mi)
Data rate copper (Ethernet): 10Mbps or 100Mbps (automatically selected)
Data rate fiber: 100Mbps
* Fiber link connection / fiber link activity
* Ethernet link connection / Ethernet link activity
* Full duplex / half duplex
* Power on
* Ethernet transfer rate 100Mbps / 10Mbps
* Fiber signal detected
Standards: IEEE802.3, IEEE802.3U, 10/100Base-TX, 100Base-FX/LX
Flow control: IEEE802.3x flow control for full-duplex mode, back-pressure flow control for half-duplex mode.
Compliance: FCC Part 15, CE, RoHS
PLEASE CALL FOR LENGTHS AND CONFIGURATIONS NOT SHOWN
